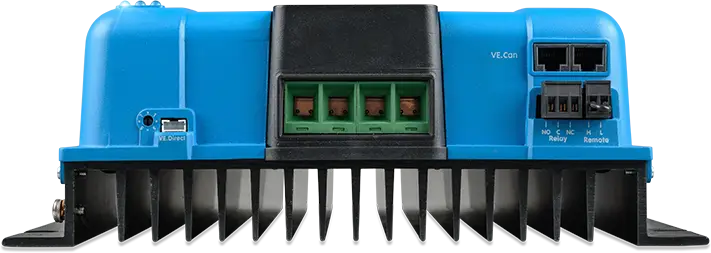

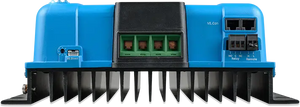

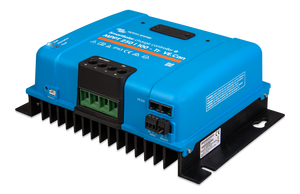

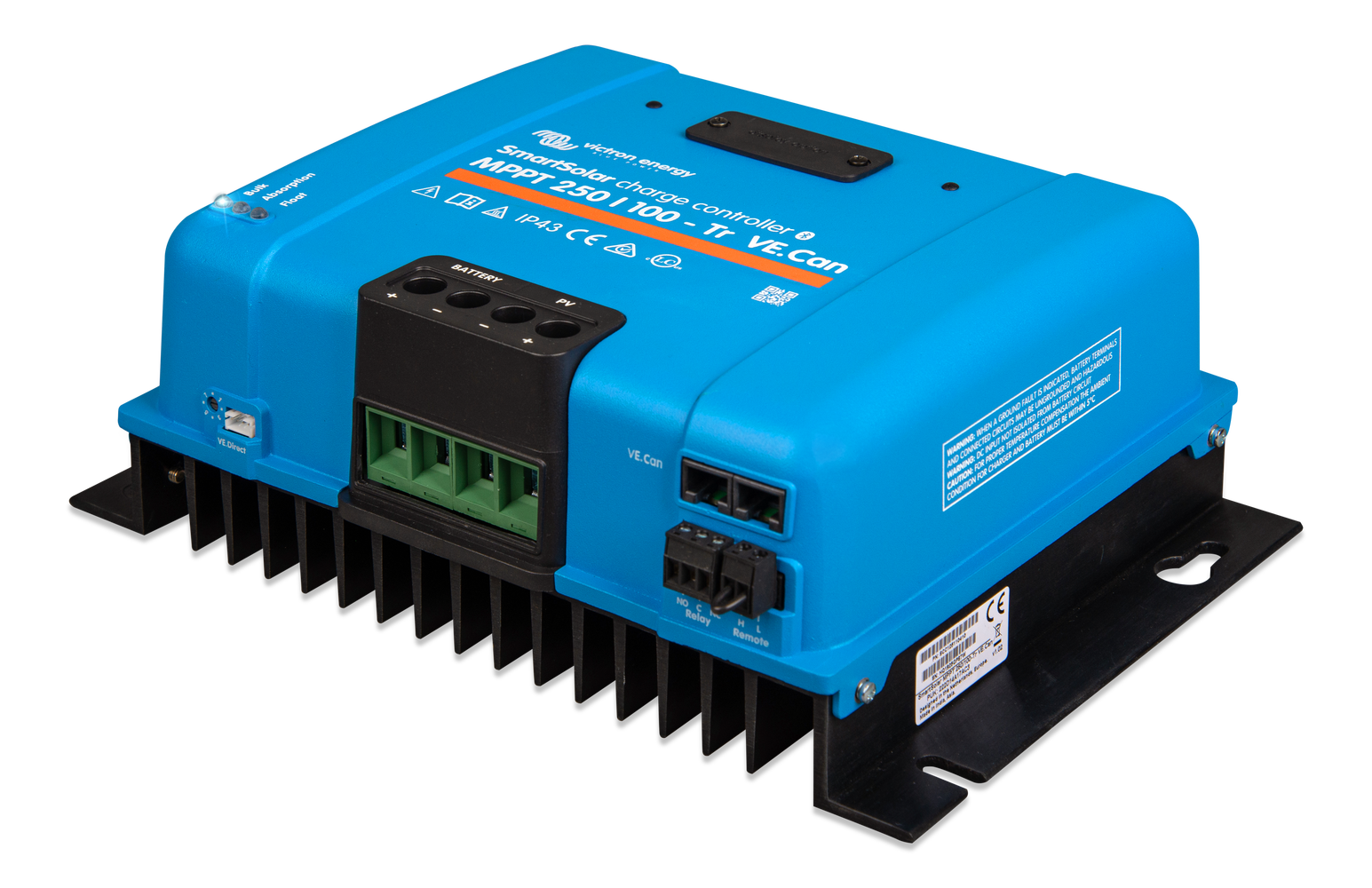

Victron SmartSolar MPPT 250/100 VE.Can Solar Charge Controller

Maximum Power. Intelligent Charging. Built for Demanding Systems.

The Victron SmartSolar MPPT 250/100 VE.Can is a high-performance solar charge controller designed to extract the maximum power from your solar panels and deliver efficient charging to your battery bank. Engineered for large-scale and high-voltage solar systems, it supports up to 250V input and 100A output, making it ideal for off-grid, hybrid, and commercial applications.

Key Features

• Ultra-Efficient MPPT Technology – Maximizes energy harvest by constantly tracking and adjusting to the optimal voltage point of your solar array
• 250V Maximum PV Input / 100A Charge Output – Supports high-voltage systems and large solar arrays
• VE.Can and VE.Direct Communication – Seamless integration with Victron GX devices for system-wide monitoring and control
• Bluetooth Built-In – Use the VictronConnect app for wireless setup, monitoring, and firmware updates
• Smart Charge Algorithms – Multi-stage charging optimizes battery health and extends battery life
• Compatible with 12V, 24V, and 48V battery banks
• Remote Monitoring Ready – Easily pair with Victron Cerbo GX or GlobalLink 520 for full system access from anywhere

The SmartSolar 250/100 is perfect for demanding solar applications requiring reliable, intelligent charging performance—whether on-grid, off-grid, or hybrid.

Specifications

• Nominal Battery Voltage: 12V / 24V / 48V (auto-select)
• Maximum PV Open Circuit Voltage: 250V
• Maximum Charge Current: 100A
• Maximum PV Input Power: Up to 5,800W @ 48V
• Communication: VE.Can, VE.Direct, Bluetooth
• Operating Temperature: -30°C to +60°C
• Enclosure Rating: IP43 (electronics), IP22 (connection area)
• Weight: 4.5 kg
• Dimensions: 216 × 295 × 103 mm

Recommended For

• Off-grid and hybrid solar systems
• Large residential or commercial PV arrays
• Energy storage and smart monitoring setups using Victron GX systems
