Tigo TS4-A-2F**

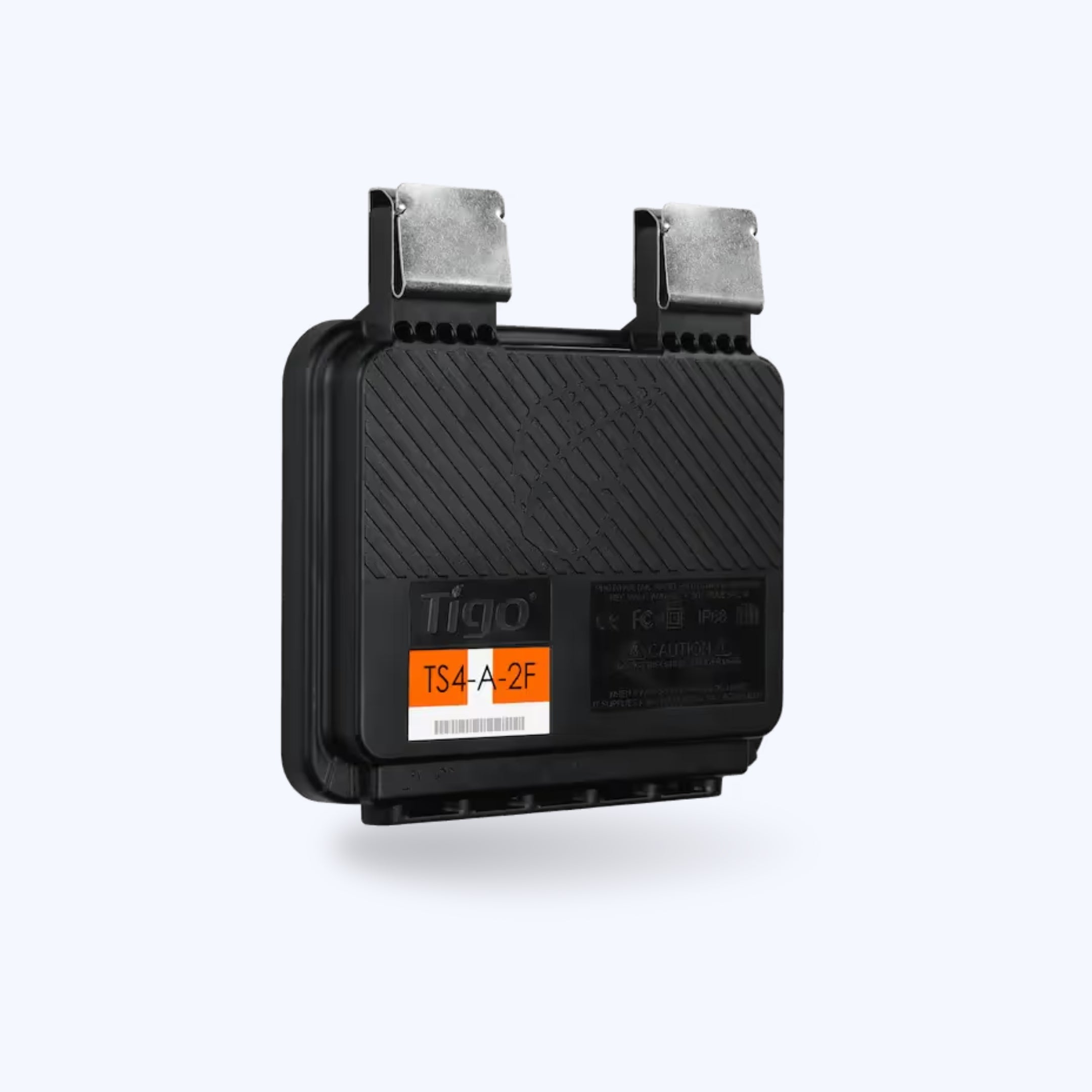

Tigo TS4-A-2F – Dual-Module Rapid Shutdown Unit
Cost-Effective Module-Level Shutdown for NEC 2017/2020 Compliance
The Tigo TS4-A-2F is a fire safety rapid shutdown unit designed to support two solar modules per device. It provides a reliable and affordable way to meet NEC 2017 and 2020 rapid shutdown requirements when paired with a Tigo RSS Transmitter and a UL PVRSS-certified inverter. Built for safety and simplicity, the TS4-A-2F is ideal for residential and commercial PV installations that require module-level shutdown without module-level monitoring or optimization.
Key Features
• Supports Two Modules per Unit – Reduces hardware costs and wiring time for dual-module strings
• NEC 2017 & 2020 Compliant – Enables module-level rapid shutdown per U.S. fire safety codes
• No Optimization or Monitoring – Pure safety solution with plug-and-play installation
• Automatic Shutdown – Power is disabled at the module level when the RSS Transmitter is turned off or grid power is lost
• UL PVRSS Certified – Listed with major inverter brands for code-compliant system design

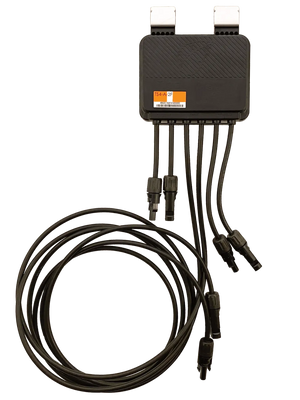

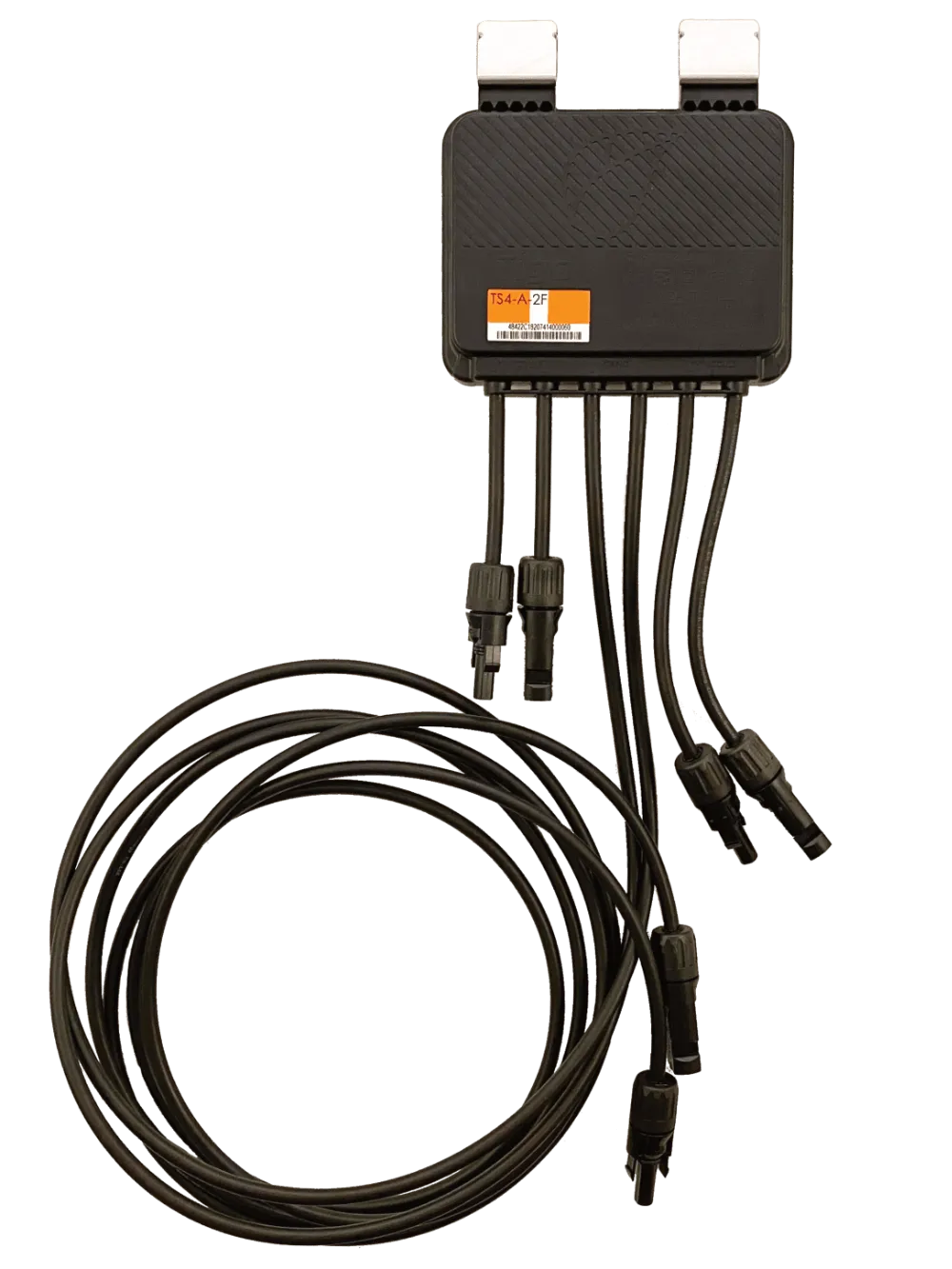

• MC4-Compatible Connections – Standardized wiring for fast, secure installation
Designed for system simplicity, the TS4-A-2F provides reliable fire safety compliance without adding cost or complexity to your solar installation.
Specifications
• Number of Modules Supported: 2
• Max Voltage (per module): 80V
• Max Current: 15A
• Connector Type: MC4
• Compliance: UL 1741, UL PVRSS, NEC 2017/2020
• Operating Temperature: -40°C to +70°C
• Dimensions: 138 x 132 x 25 mm
• Weight: 430g
• Mounting: Module-level, tool-free clip-on design
Recommended For
• Residential and commercial PV systems
• Installers seeking code-compliant rapid shutdown without monitoring
• Pairing with Tigo RSS Transmitter and UL-listed inverters
