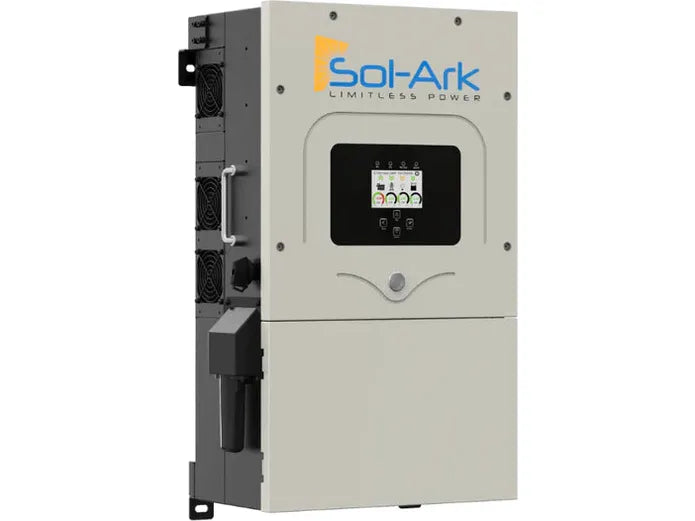

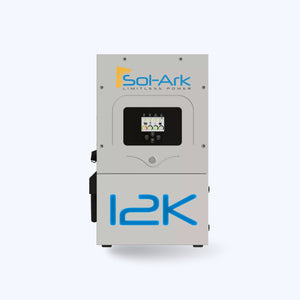

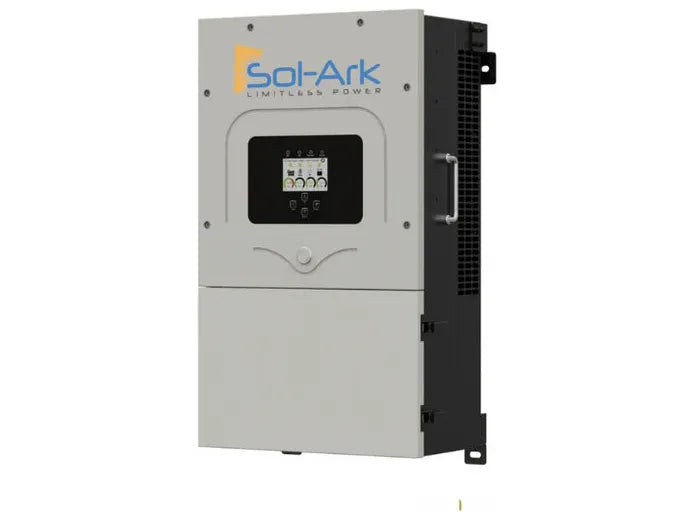

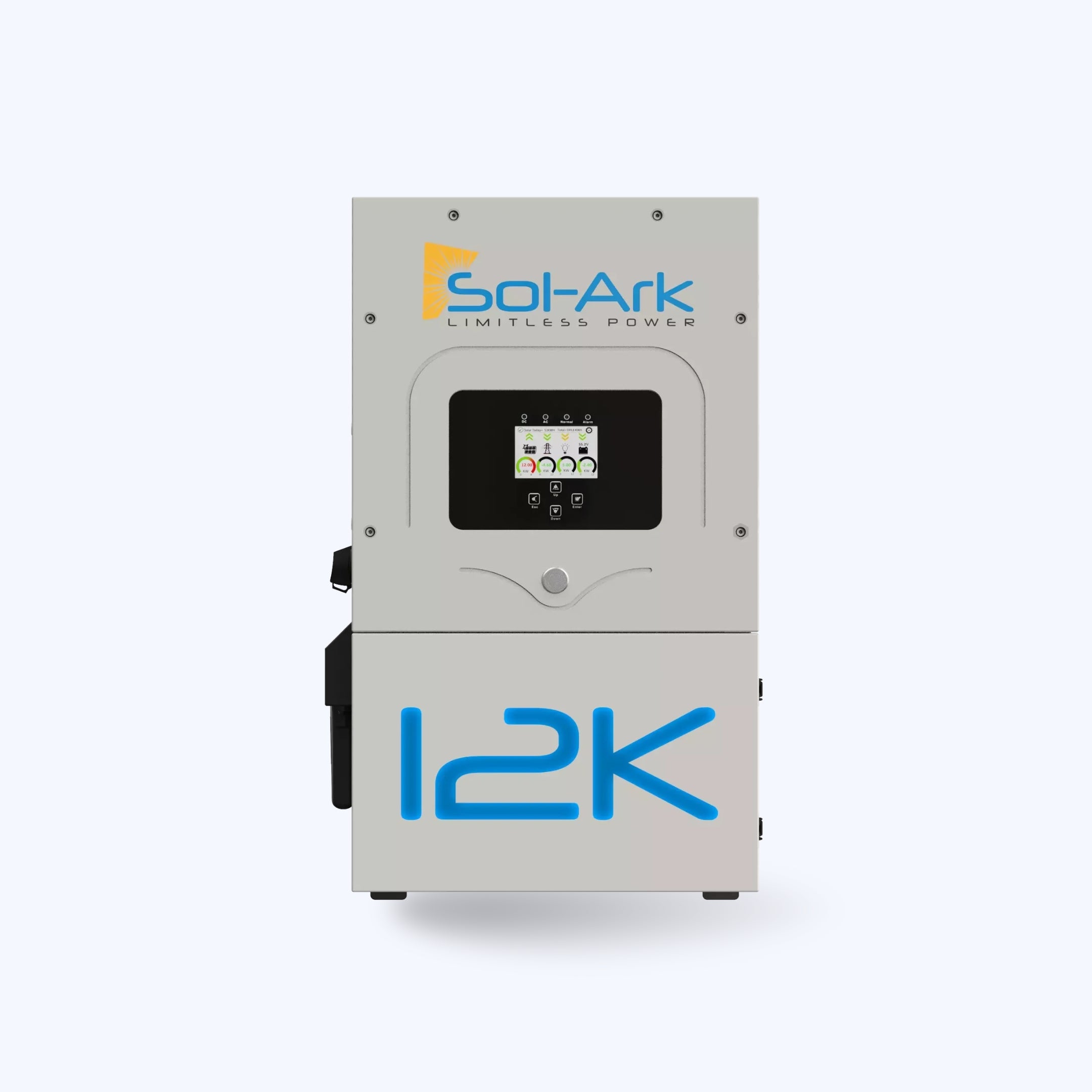

Sol-Ark 12K Hybrid Inverter

All-in-One Power Control for Backup, Off-Grid, and Solar Energy Systems

The Sol-Ark 12K Hybrid Inverter is a powerful, all-in-one solution engineered for residential backup, grid-tied, and off-grid solar systems. Built to handle whole-home energy loads, it delivers 12,000W of continuous power with split-phase 120/240V output. With integrated MPPT solar charge controllers, battery charger, and automatic transfer switch, the 12K simplifies installation while maximizing system efficiency.

Key Features

• 12,000W Continuous Power – Powers entire homes including HVAC, well pumps, and appliances
• Hybrid Functionality – Supports grid-tied, off-grid, and battery backup modes
• Built-In MPPT Solar Charge Controller – Maximize solar harvest with dual high-voltage inputs (13kW solar input capacity)
• Battery-Ready – Works with 48V lithium, AGM, or lead-acid batteries
• AC & DC Coupling – Flexible integration for new or existing solar systems
• Built-In Load Management – Includes transfer switch and programmable load shedding for smart energy control
• Remote Monitoring – Wi-Fi and Ethernet access via the Sol-Ark mobile app or desktop portal
• EMP-Protected Option Available – Military-grade design for maximum reliability
• 10-Year Warranty – U.S.-based support and long-term product confidence

Designed for reliability, performance, and flexibility, the Sol-Ark 12K is ideal for homes seeking energy independence, long-duration backup, or seamless solar integration.

Technical Specifications

• Output Power: 12,000W (continuous) / 16,000W (30 mins surge)
• Voltage Output: 120/240V split-phase
• Max PV Input: 13,000W
• Max Battery Input: 500A
• Communication: Wi-Fi, Ethernet, RS485, CANBus
• Dimensions: 31" x 18.5" x 8.5"
• Weight: 75 lbs
• Certifications: UL 1741 SA, IEEE 1547, CA Rule 21, HECO

Recommended For

• Whole-home backup systems
• Residential solar + storage installations
• Off-grid and remote property power systems
• Energy-conscious homeowners
