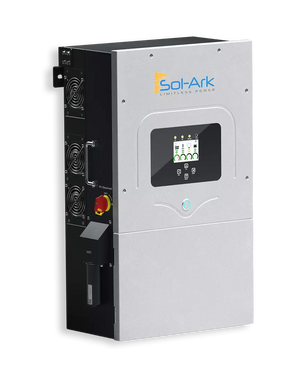

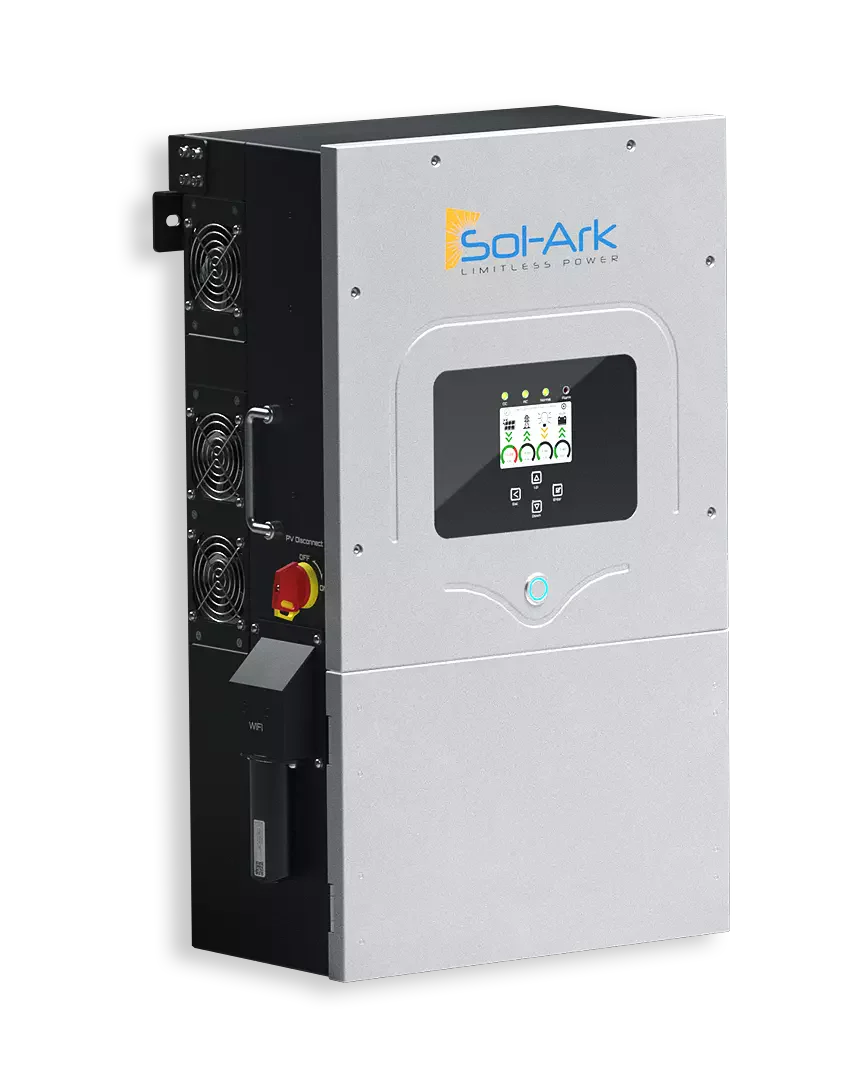

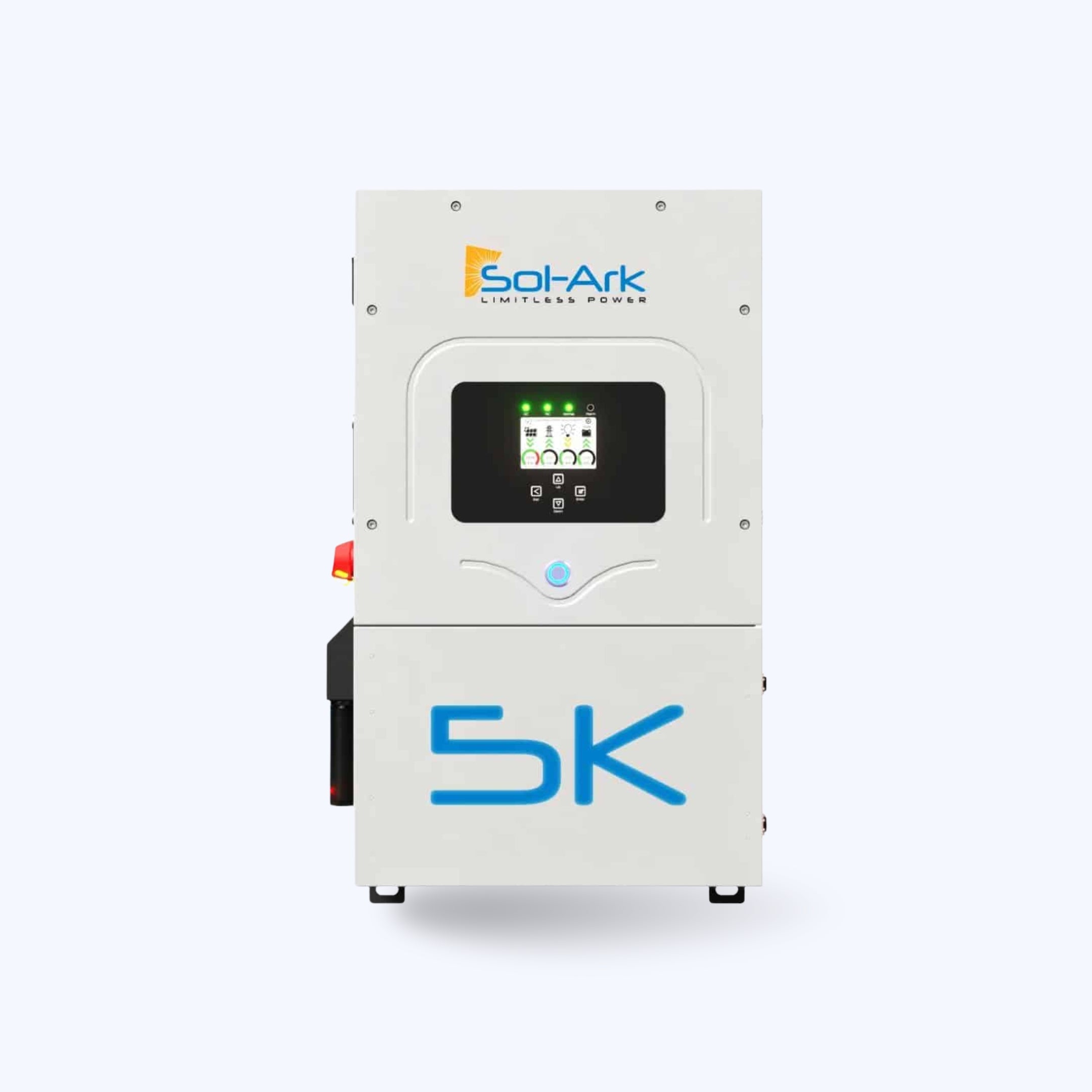

Sol-Ark 5K Hybrid Inverter

Compact, All-in-One Power for Small Homes, Cabins, and Off-Grid Systems

The Sol-Ark 5K Hybrid Inverter is a versatile, high-efficiency solution designed for small to medium residential energy systems, mobile applications, and off-grid setups. With 5,000W of continuous output and integrated MPPT charge controllers, this inverter is built to simplify solar + storage installations while offering true hybrid flexibility—grid-tied, battery backup, or fully off-grid.

Key Features

• 5,000W Continuous Power Output – Ideal for smaller homes, cabins, RVs, and light commercial use
• 120/240V Split-Phase Output – Runs standard household appliances including refrigerators, pumps, and lights
• Multi-Mode Operation – Supports grid-tied, off-grid, and battery backup configurations
• Built-In MPPT Solar Charge Controller – Up to 6.5kW of solar input with high-speed tracking for max harvest
• Battery Integration – Compatible with 48V lithium, AGM, or lead-acid battery banks
• AC & DC Coupling – Easily connects to existing systems or new solar installs
• Smart Load Management – Includes programmable load-shedding and generator auto-start
• Remote Monitoring – Control and monitor via Wi-Fi or Ethernet through the Sol-Ark mobile and desktop apps
• All-in-One Design – Inverter, charger, transfer switch, and load controller in a single unit

Ideal For

• Small homes and cabins
• Off-grid or backup power systems
• Mobile setups such as RVs or tiny homes
• Budget-conscious installations needing reliability and flexibility

Technical Specifications

• Continuous Output Power: 5,000W
• Solar Input Power: 6,500W (DC)
• Output Voltage: 120/240V split-phase
• Battery Bank: 48V (compatible with lithium, AGM, lead-acid)
• Max Battery Current: 120A
• MPPT Voltage Range: 60–145V DC
• Communication: Wi-Fi, Ethernet, CANBus, RS485
• Certifications: UL 1741 SA, IEEE 1547, CA Rule 21
• Dimensions: 29.5" x 17.7" x 10"
• Weight: Approx. 55 lbs
