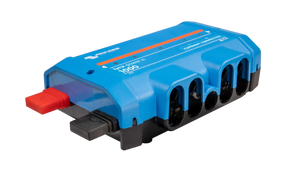

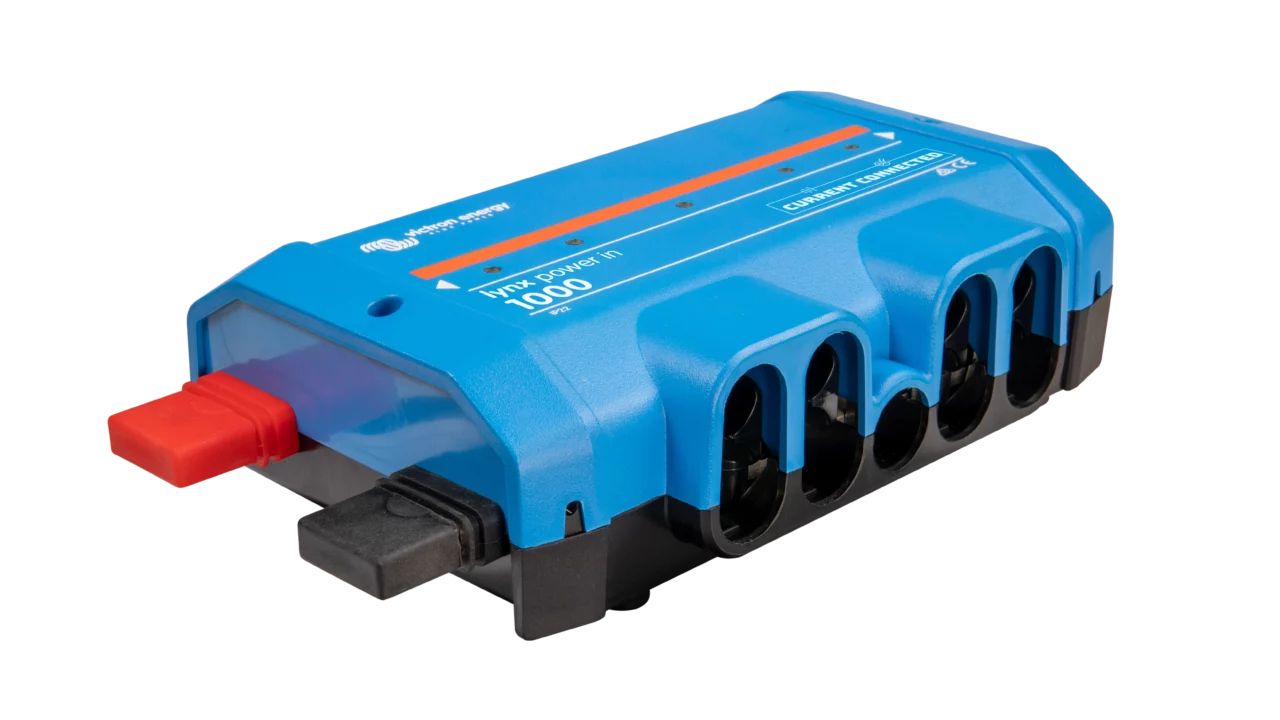

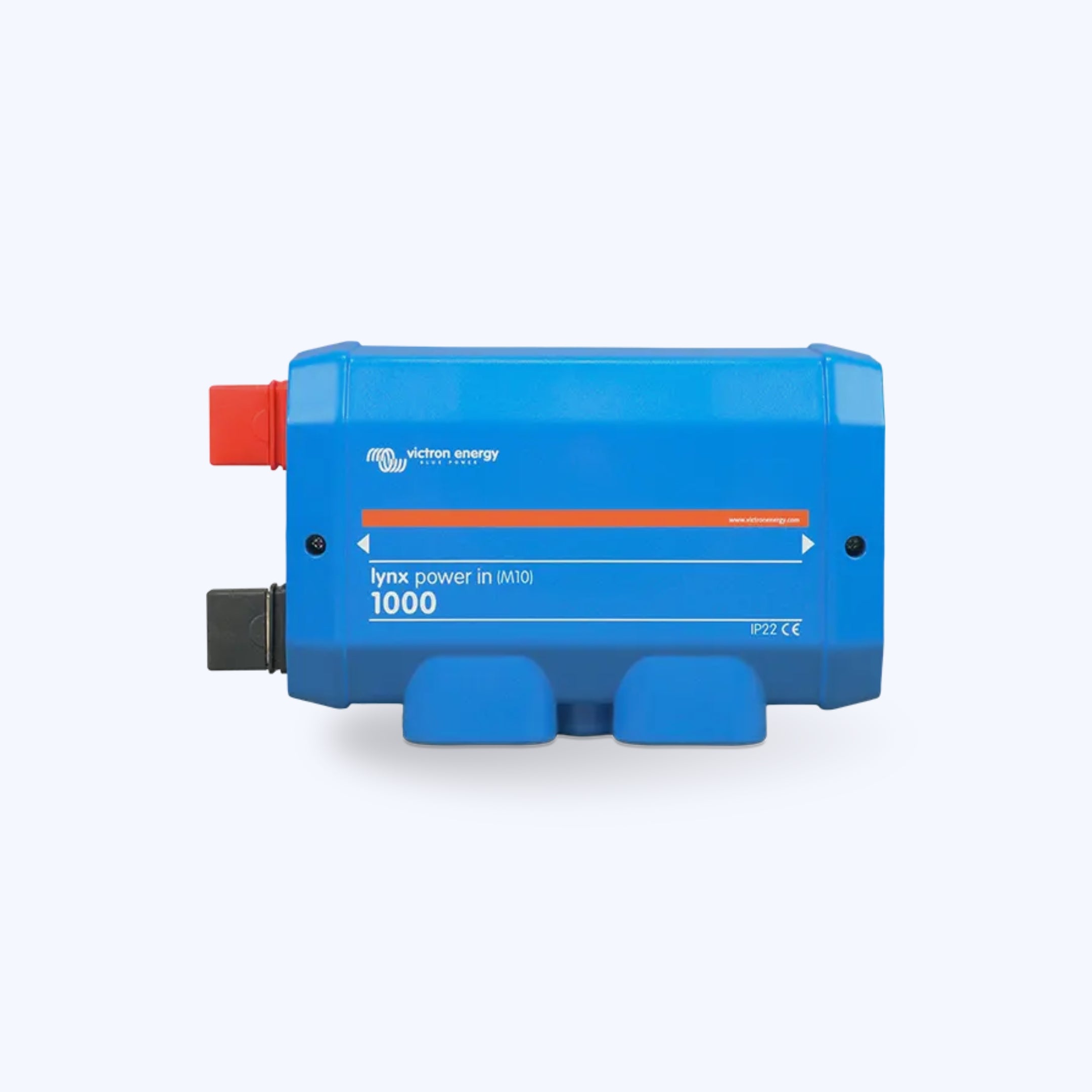

Victron Lynx Power In

High-Current DC Busbar for Clean, Centralized Power Input

The Victron Lynx Power In is a robust, high-current DC busbar designed to serve as the main power input hub for your energy storage system. As part of Victron’s modular Lynx distribution series, it allows for safe, organized connection of your battery bank to downstream components like inverters, charge controllers, and fuses.

Key Features

• Centralized Power Input – Connects the battery bank to your DC power distribution system
• Supports High Current Loads – Rated up to 1000A for large-scale energy systems
• Modular Design – Fully compatible with other Lynx components including Lynx Distributor, Lynx Shunt VE.Can, and Lynx Smart BMS
• Clean & Scalable Wiring – Reduces clutter and simplifies system layout in off-grid, mobile, and marine installations
• Durable Construction – Built to handle extreme environments with reliable terminal connections

Ideal for system builders and installers who need a dependable, high-capacity DC busbar to manage power input from lithium or lead-acid batteries in solar, backup, or mobile applications.

Specifications

• Voltage Compatibility: 12V, 24V, and 48V systems
• Max Current Rating: 1000A
• Connections: M8 terminal studs
• Dimensions: 190 x 180 x 80 mm
• Operating Temperature: -40°C to +60°C
• Part of the Victron Lynx Modular Power Distribution System

Recommended For

• Off-grid and hybrid solar systems
• Battery-to-system DC distribution
• Marine, RV, and industrial energy storage setups
• Use with Victron Smart BMS, Lynx Distributor, and Shunt modules
