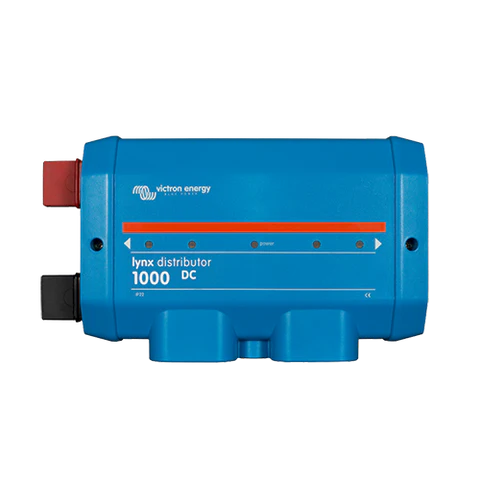

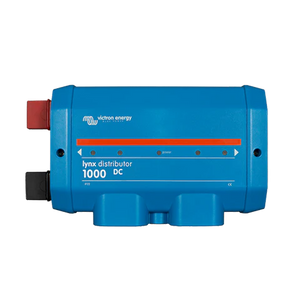

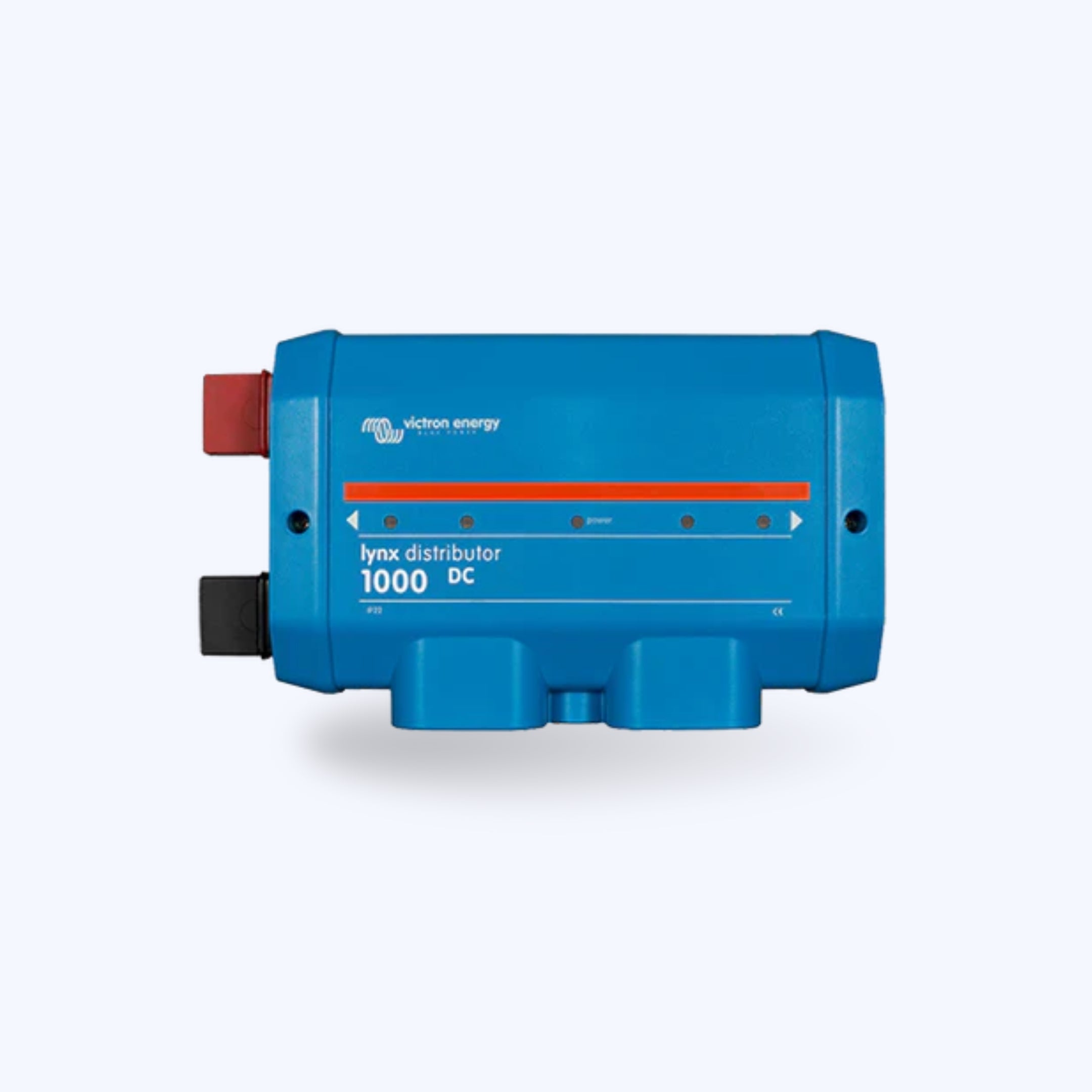

Victron Lynx Distributor

Fused DC Power Distribution with Built-In Monitoring

The Victron Lynx Distributor is a modular DC busbar designed to safely distribute and protect multiple DC circuits within your power system. Featuring four fused connections with built-in fuse monitoring, it’s an essential component for clean, organized, and protected battery-to-load configurations in off-grid, marine, RV, and backup power setups.

Key Features

• Four Independently Fused Outputs – Distribute power to inverters, DC loads, charge controllers, or other system components
• Built-In Fuse Monitoring – LED indicators provide real-time visual alerts for blown fuses
• High Current Rating – Handles up to 1000A total current for large energy systems
• Modular Design – Seamlessly integrates with other Victron Lynx components, including the Lynx Power In, Smart BMS, and Lynx Shunt
• Clean & Safe Installations – Helps streamline wiring, reduce clutter, and improve system diagnostics
• Expandable System – Part of the Victron Lynx power distribution series for scalable setups

The Lynx Distributor is ideal for installers and system designers who require a professional-grade DC power distribution solution with built-in safety and monitoring.

Specifications

• System Voltage: 12V, 24V, or 48V DC
• Max Current: 1000A
• Number of Outputs: 4 (fused)
• Fuse Monitoring: LED indicator per circuit
• Connections: M8 terminal studs
• Dimensions: 190 x 180 x 80 mm
• Compatible with MIDI and MEGA fuses (sold separately)
• Operating Temperature: -40°C to +60°C
• Communication: Works with Victron GX systems for remote monitoring (when combined with Lynx Shunt VE.Can or Lynx Smart BMS)

Recommended Use

• DC power distribution from battery banks
• Off-grid solar, RV, marine, and commercial power systems
• Integrated Victron installations using the Lynx series
